11.6inch
Microtech-lcd
MTF116FD13A-V1
1920*1080 high brightness 750 nits 11.6 inch LCD IPS screen EDP tft display LCD module
This module is a color active matrix LCD module incorporating Oxide TFT (Thin Film Transistor).It is composed of a
color TFT-LCD panel, driver ICs, a control circuit and power supply circuit. Graphics and texts can be displayed on a
1920×3×1080 dots panel with 262144 colors by using eDP (Embedded Display Port) Ver1.2 interface and supplying +3.3V
DC supply voltage for TFT-LCD panel driving.
In this TFT-LCD panel, color filters for excellent color performance is incorporated to realize brighter and clearer
pictures, making this Module optimum for use in multi-media applications.
Optimum viewings are in all directions. 9serial
4paralel LED structure.
Backlight-driving LED controller is built in this Module. eDP
transfer rate specification: 2.7Gbps/2 lane.
Parameter | Specification | Unit | Remarks |
Panel Size | 11.6” | inch | |
Number of Pixels | 1920*RGB(3)*1080 | pixels | |
Active Area | 256.32(H) × 144.18(V) | mm | |
Pixel pitch | 0.1335(H) x 0.1335(V)s | mm | |

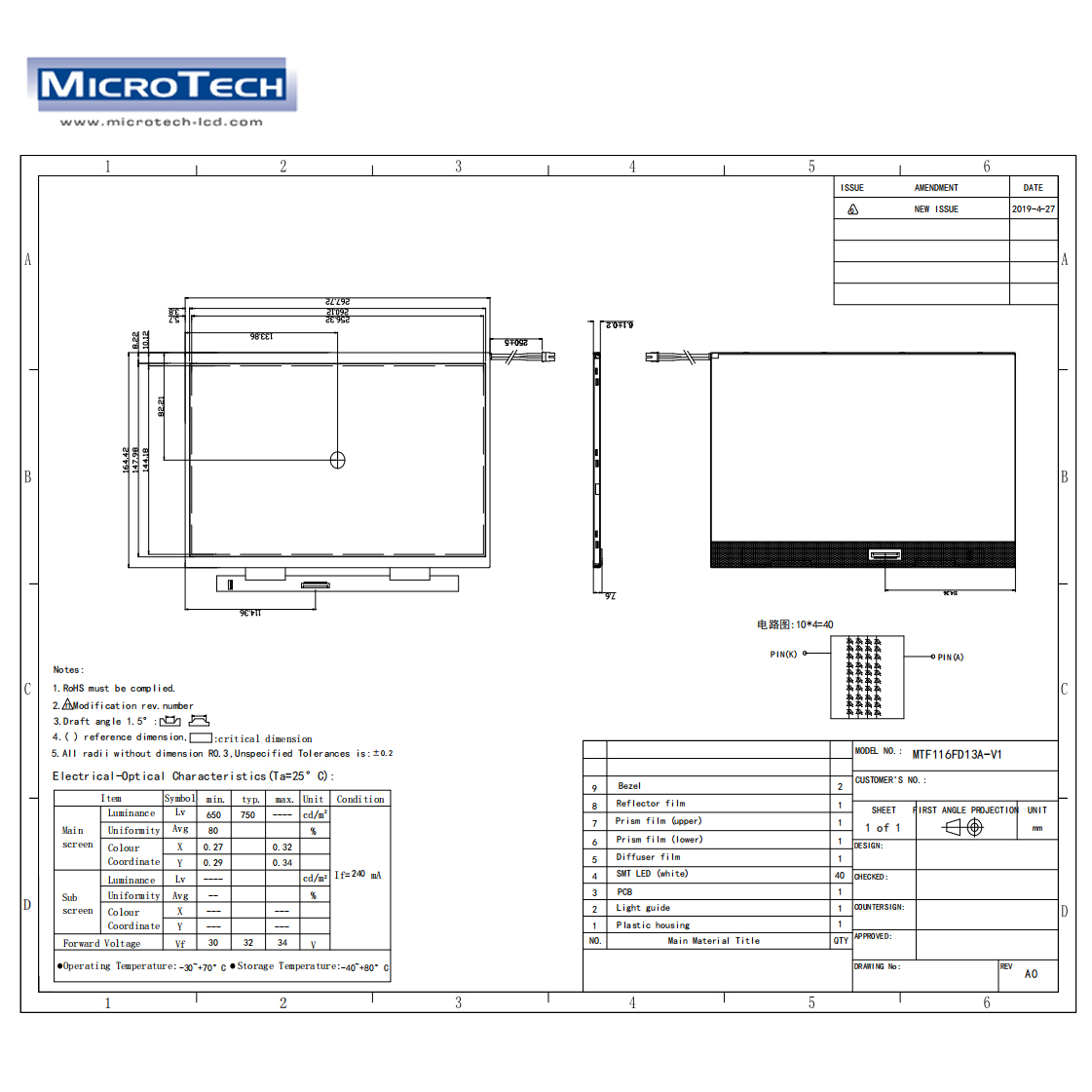

Outline Dimension | 267.72(H)*164.42(V)*6.1(D) | ||
Number of Colors | 16.7M | ||
Display Mode | Normally Black | ||
Display Format | RGB vertical stripe | ||
Luminance (cd/m^2) | 750(TYP.) | nit | |
Interface | eDP | ||
Backlight | White LED | ||
Operation Temperature | 0~50 | ℃ | |
Storage Temperature | -20~60 | ℃ | |
Weight | TBD | g |
