TFT Display 11.6 inch LCD Screen EDP 1920*1080 Resolution IPS Display Modules
Hong Kong
Booth: 5B-F09 | World of Display Technology
Product Specification
Size
11.6inch
Brand
Microtech-lcd
Model No.
MTF116FD06A-V1
Customised
Yes
Product Description
tft display 11.6 inch LCD screen EDP 1920*1080 resolution IPS Display Modules

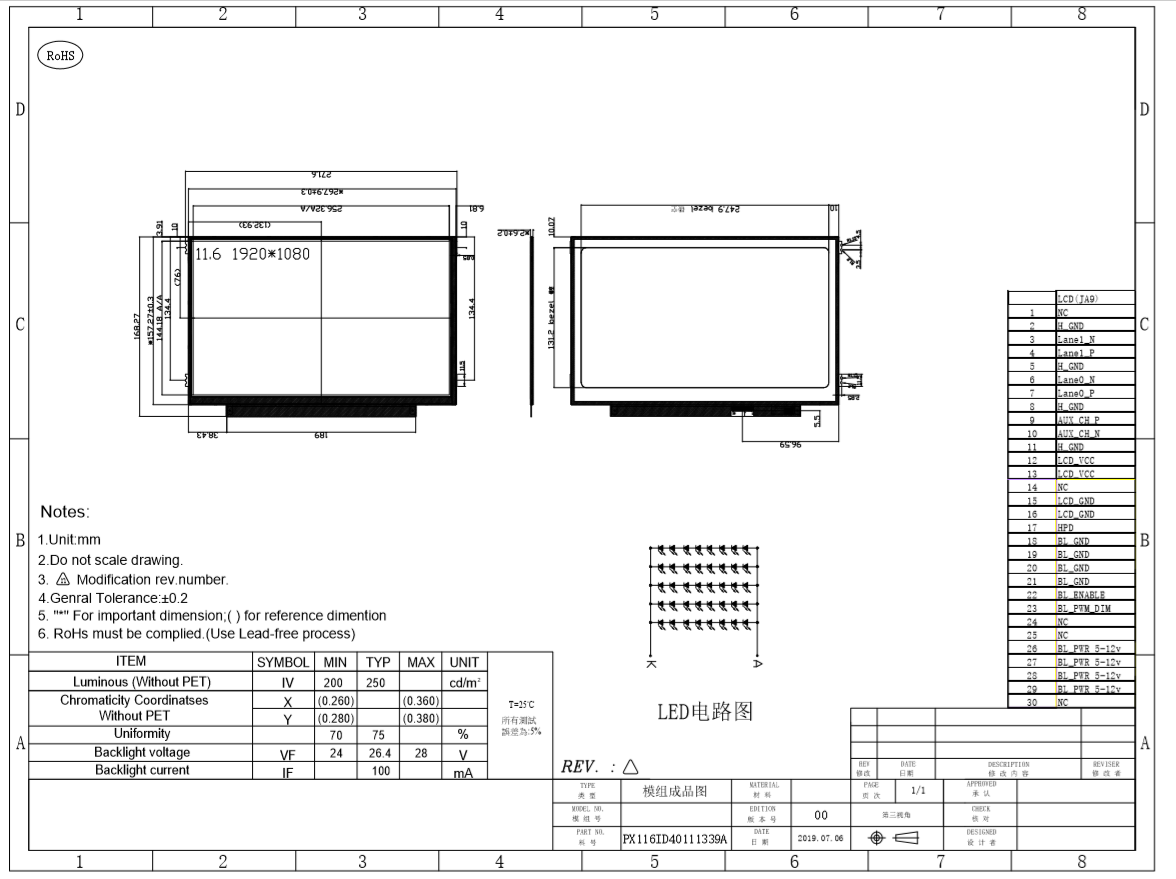

Parameter | Specification | Unit | Remarks |
Outline Dimension | 267.90(H) *157.22 (V) x2.60(D) | mm | |
Display area | 256.32(H) * 144.18(V) | mm | |
Number of Pixel | 1920RGB (H) * 1080 (V) | pixels | |
Pixel pitch | 0.1335(H) x 0.1335(V)s | mm | |
Pixel arrangement | RGB Vertical stripe | ||
Display mode | AHVA, Normally Black IPS | ||
Color Filter Array | RGB vertical stripes | ||
Backlight | White LED | ||
Weight | TBD | g | |
Electrical Interface | EDP |
Production Lead Time
25-45 days
