15.6 inch 1920*1080 TFT LCD module 1000Nits EDP interface apply to laptop Screen
Microtech Technology Company Limited
Hong Kong
Booth: 5B-F09 | World of Display Technology
Product Specification
Brand

Microtech

Size

15.6inch

Customised

Yes

Model No.

MTF156HAN02.1_Ver1.0(1000Nits)

Product Description

MTF156HAN02.1_Ver1.0(1000Nits)  is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 FHD, 1920(H) x 1080(V) screen and 16.7M colors ( RGB 8-bits) with LED backlight driving circuit. All input signals are eDP (Embedded DisplayPort) interface compatible. MTF156HAN02.1_Ver1.0(1000Nits) is designed for a display unit of notebook style personal computer and industrial machine.

Items
Unit
Specifications
Screen Diagonal
[mm]
15.6”
Active Area
[mm]
344.16 x 193.59
Resolution

1920x3(RGB) x 1080
Pixel Pitch
[mm]
0.17925x0.17925
Pixel Arrangement

R.G.B. Vertical Stripe
Display Mode

AHVA, Normally Black
Nominal Input Voltage VDD
[Volt]
+3.3 (Typ.)
LCD Power Consumption
[Watt]
0.98 (Max.)
LED Power Consumption
[Watt]
10.4 (Max.)
Weight
[Grams]
600 (Typ), 660 (Max)

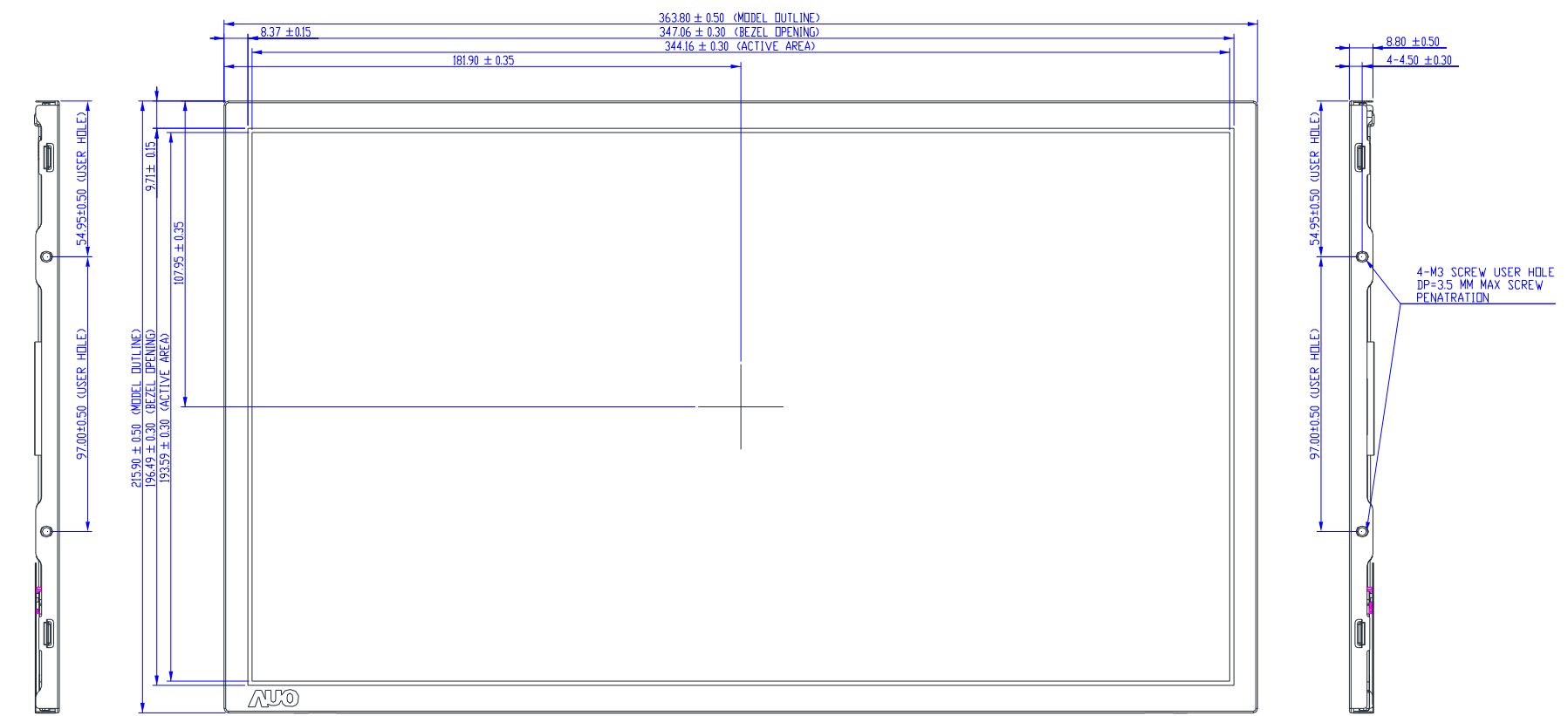

Physical Size Include bracket
[mm]

Min.
Typ.
Max.
Length
363.3
363.8
364.3
Width
215.4
215.9
216.4
Thickness

8.8

Electrical Interface

2 Lane eDP
Surface Treatment

Anti-glare, 3H
Support Color

16.7M colors ( RGB 8-bits)
Temperature Range Operating Storage (Non-Operating)
[℃] [℃]
-20 to +70 (+70°C as panel surface temperature) -20 to +70
RoHS Compliance

Yes

Production Lead Time

25-45 days
