7.0 inch serial display resistive touch SPI 1024*600 driver IC LT7688 TTL/UART interface 500 brightness
香港
展位編號: 5B-F09 | 顯示技術世界
產品規格
尺寸
7.0 inch
是否可訂造
可以
品牌
Microtech
型號編號
MTR070WS34A-V1
產品簡介

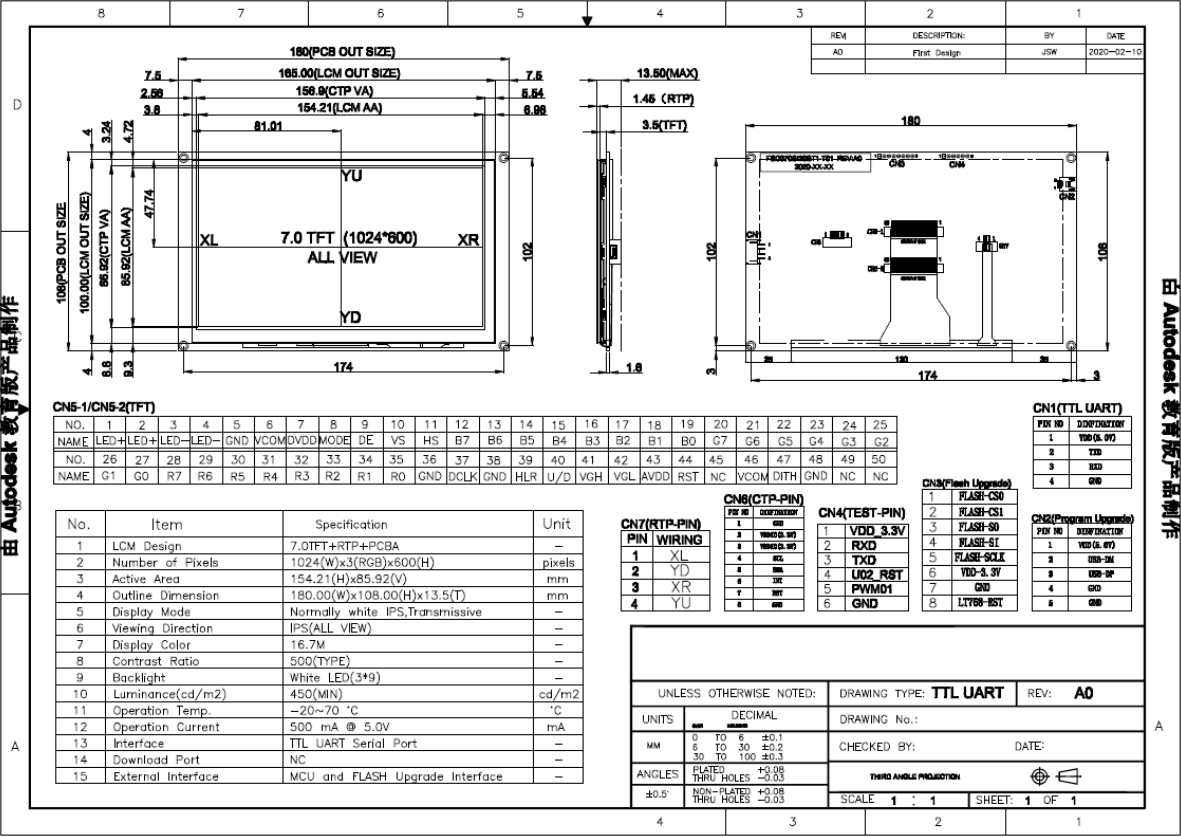

MTR070WS34A-V1 is a TFT dot matrix LCD module. It is composed of a PCBA, color-LCD panel, driver IC, FPC and a backlight unit. The module display area contains 1024x600 pixels. This product accords with RoHS environmental criterion.
Item | Contents | Unit | Notes |
LCD Type | TFT TRANSMISSIVE | / | / |
Viewing direction | All View | O' Clock | IPS |
PCBA Outside | 180.00(W)*108.00(H)*13.50(T) | mm | / |
LCM Outside Dimensions | 165.00(W)*100.00(H)*3.50(T) | mm | / |
Active Area (WxH) | 154.21 (W)*85.92(H) | mm | / |
Number of Dots | 1024x600 | / | / |
Driver IC | LT7688 | / | Vcc=3.3V |
Colors | 16.7M | / | / |
Touch Type | RTP (4 Line) | / | Vctp=3.3V |
Backlight Type | 3*9=27LEDS/White | / | Vbl=9.2V |
Backlight Luminance | 500 | Cd/m2 | / |
Interface Type | TTL UART (TXD/RXD) | / | 4PIN(2.54) |
Input Voltage | 5.0V (VDD) | V | 2A |
生產所需時間
25-45 日
