15.0 inch 1024*768 TFT LCD touch screen 20 pin CTP LVDS interface
Microtech Technology Company Limited
香港
展位編號: 5B-F09 | 顯示技術世界
產品規格
型號編號

MTF150XA05A-V1+CTP

品牌

Microtech

尺寸

15.0inch

是否可訂造

可以

產品簡介

MTF150XA05A-V1 is a 15.0” TFT Liquid Crystal Display IAV module with LED Backlight units and 20 pins LVDS interface. This module supports 1024 x 768 XGA mode and can display 16.2M/262k colors. The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical interface requirements for an industry standard 15.0” XGA LCD panel and the LED driving device for Backlight is built in PCBA.

- XGA (1024 x 768 pixels) resolution

- DE (Data Enable) only mode

- LVDS Interface with 1pixel/clock

- PSWG (Panel Standardization Working Group)

- Wide operating temperature.

- RoHS compliance

-TFT LCD Monitor

- Factory Application

- Amusement

- Vehicle


Specification
Unit
Note

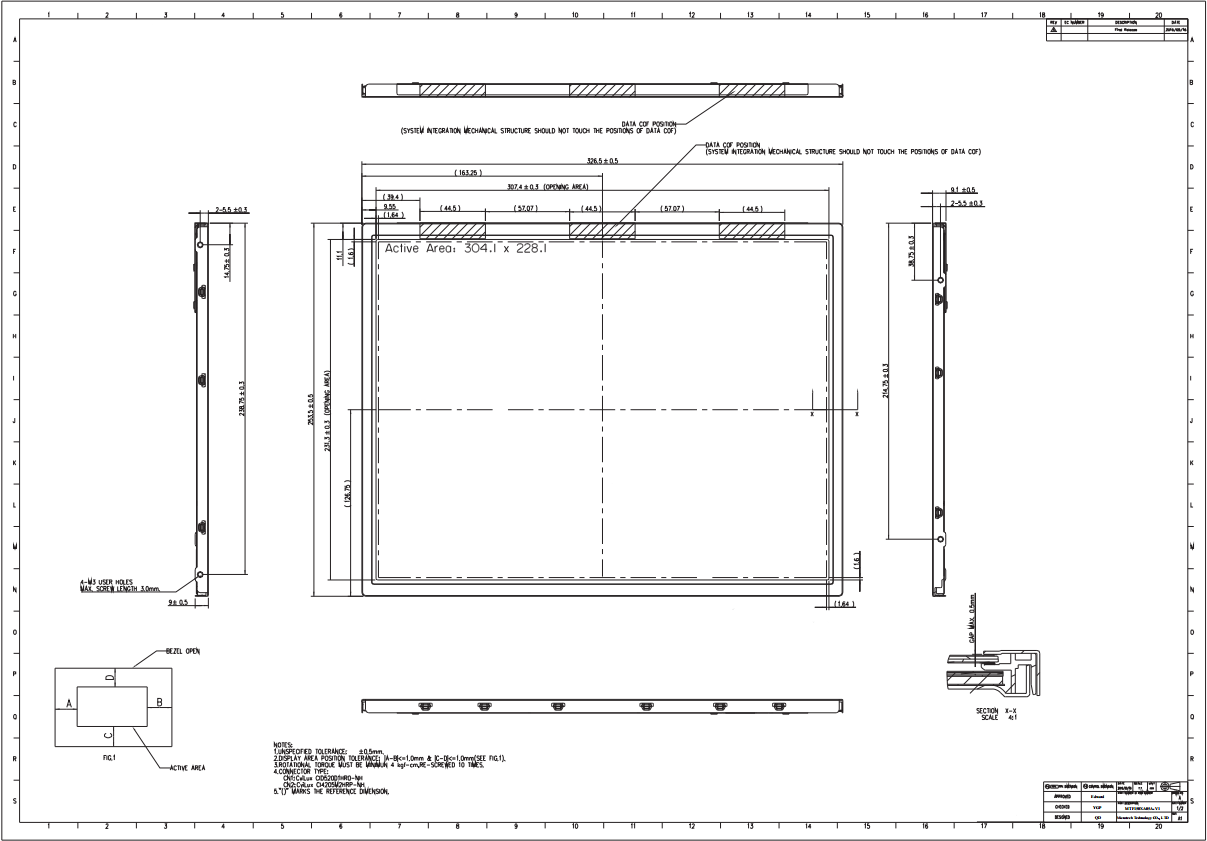

Active Area
304.1 (H) x 228.1 (V) (15.0" diagonal)
mm
(1)
Bezel Opening Area
307.4(H) x 231.3(V)
mm
Driver Element
a-Si TFT active matrix
-
-
Pixel Number
1024xR.G.Bx768
pixel
-
Pixel Pitch
0.297(H) xO.297(W)
mm
-
Pixel Arrangement
RGB vertical Stripe
-
-
Display Colors
16.2M/262K
color
-
Display Mode
Normally Black
-
-
Surface Treatment
Hard Coating (3H), Anti-Glare
-
-
Module Power Consumption
7.4
w
Max.


生產所需時間

25-45 日
