產品規格
品牌
Microtech
是否可訂造
可以
尺寸
15.0inch
型號編號
MTF150XA05A-V1
產品簡介
15.0 inch LCD screen 1024*768 TFT LCD module 20pin LVDS interface

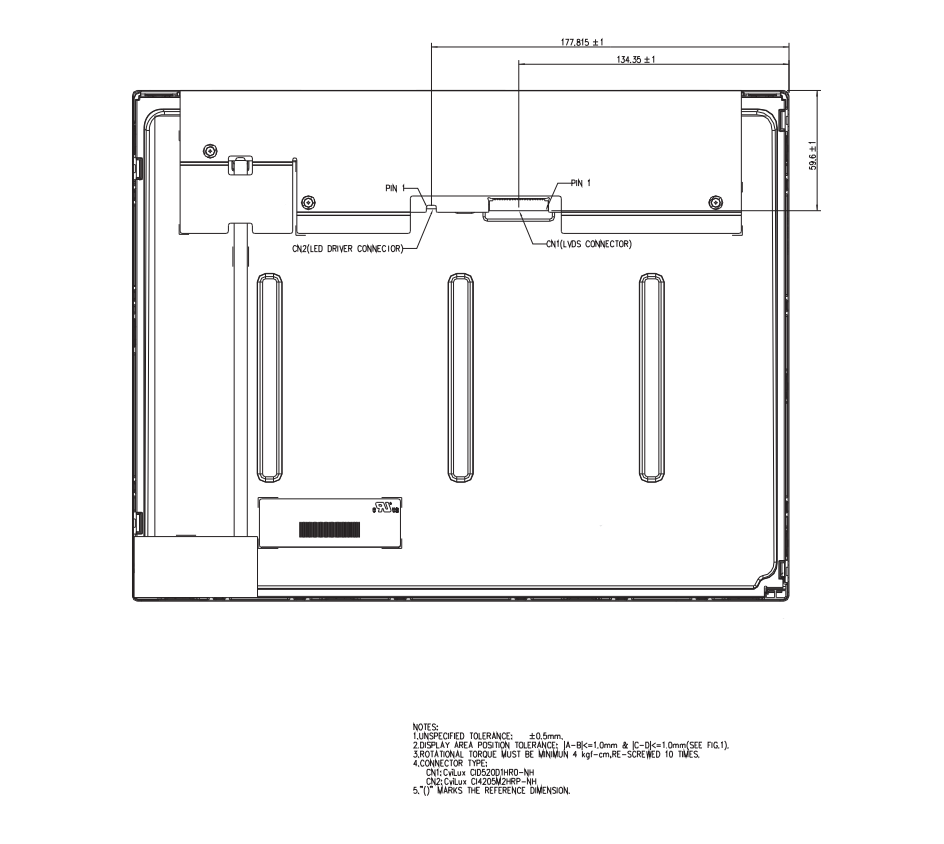

MTF150XA05A-V1 is a 15.0” TFT Liquid Crystal Display IAV module with LED Backlight units and 20 pins LVDS interface. This module supports 1024 x 768 XGA mode and can display 16.2M/262k colors. The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical interface requirements for an industry standard 15.0” XGA LCD panel and the LED driving device for Backlight is built in PCBA.
Specification | Unit | Note | |

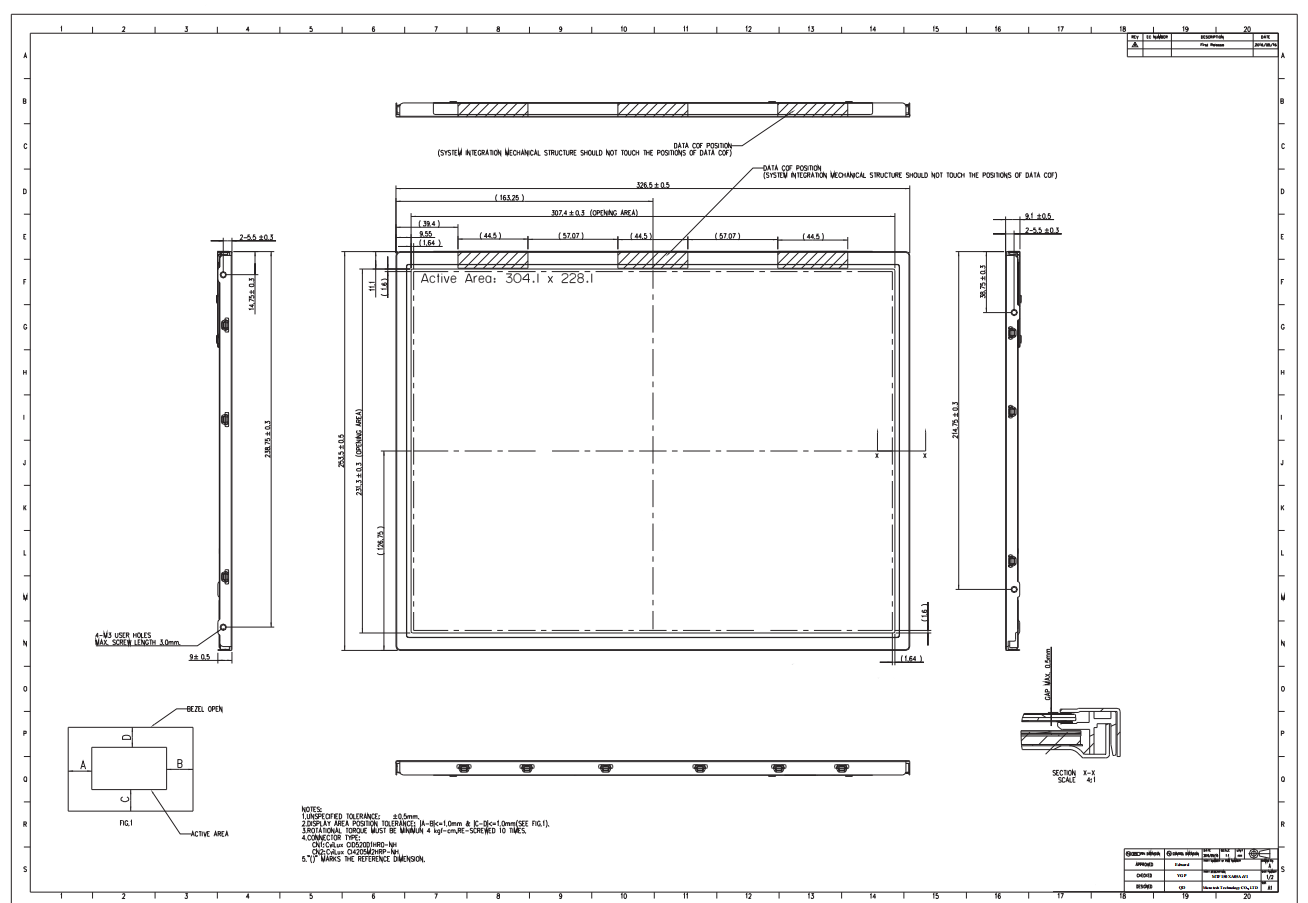

Active Area | 304.1 (H) x 228.1(V)(15.0H diagonal) | mm | (1) |
Bezel Opening Area | 307.4(H) x 231.3(V) | mm | |
Driver Element | a-Si l r l active matrix | - | - |
Pixel Number | 1024 x R.G.Bx 768 | pixel | - |
Pixel Pitch | 0.297(H) xO.297(W) | mm | - |
Pixel Arrangement | RGB vertical Stripe | - | - |
Display Colors | 16.2M/262K | color | - |
Display Mode | Normally Black | - | - |
Surface Treatment | Hard Coating (3H), Anti-Glare | - | - |
Module Power Consumption | 7.4 | w | Max. |
生產所需時間
25-45 日
