15, 20,30, 45, 60, 90, 120 Symmetrical, 120*50, 30*90 Asymmetrical
PENEL
Cree led smd3030
Meanwell brand
1000W
5 years warranty
135-140LM/W
100-305VAC

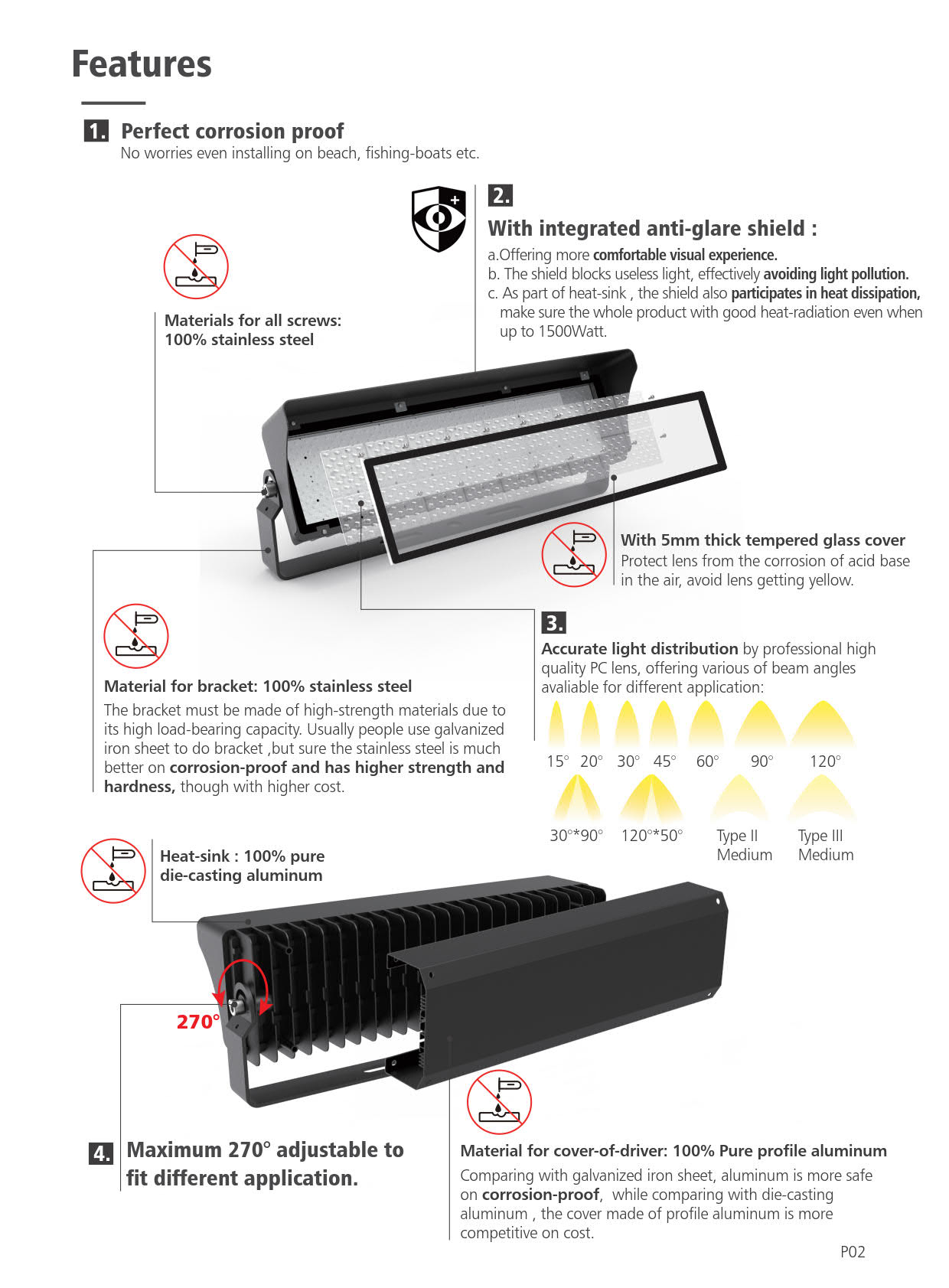

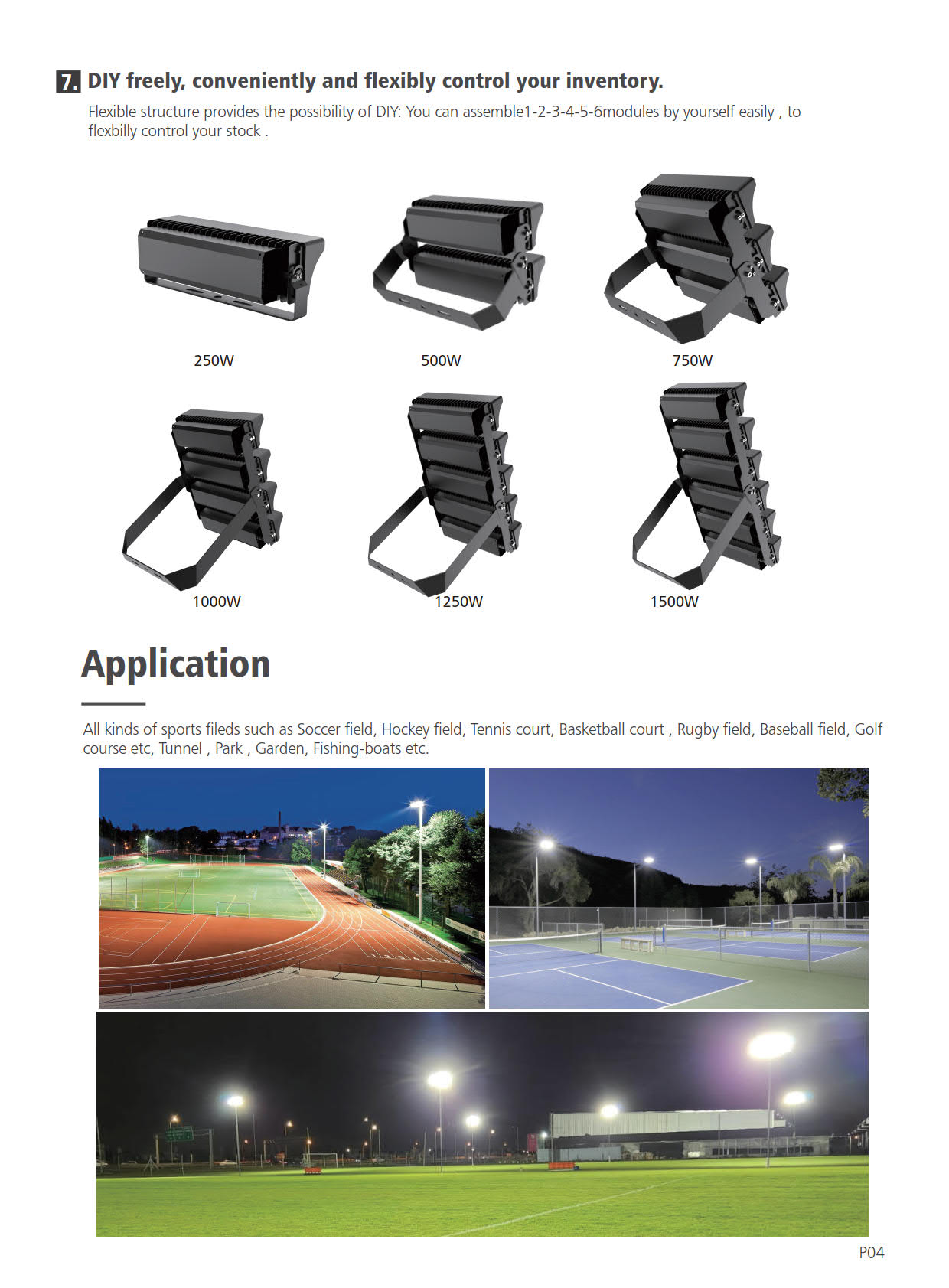

It's a newly developed modular LED Sports light from 250W to 1500W, the integrated anti-glare shield helps on comfortable visual experience, and blocks useless lights to effectively avoid light-pollution. It's also perfect corrosion-proof with the stainless steel bracket. Check this perfect light for Tennis /Basketball courts, Soccer /Baseball /Hockey /Cricket fields , Golf courses, and Seaside high power illumination:
Model: FL-1000W-NS08
Specifications :
● Product Type: High power Modular led Flood light , led Sports light ,led stadium light
● Power : 1000Watt
● Light source :1152pcs /1728pcs of Cree SMD3030 chips
● Color Temperature: 3000K,4000K, 5000K, 5700K ,6500K
● CRI :>70 or >80 or >90
● Luminous Efficiency : 138 lm/w in average with 1728 chips

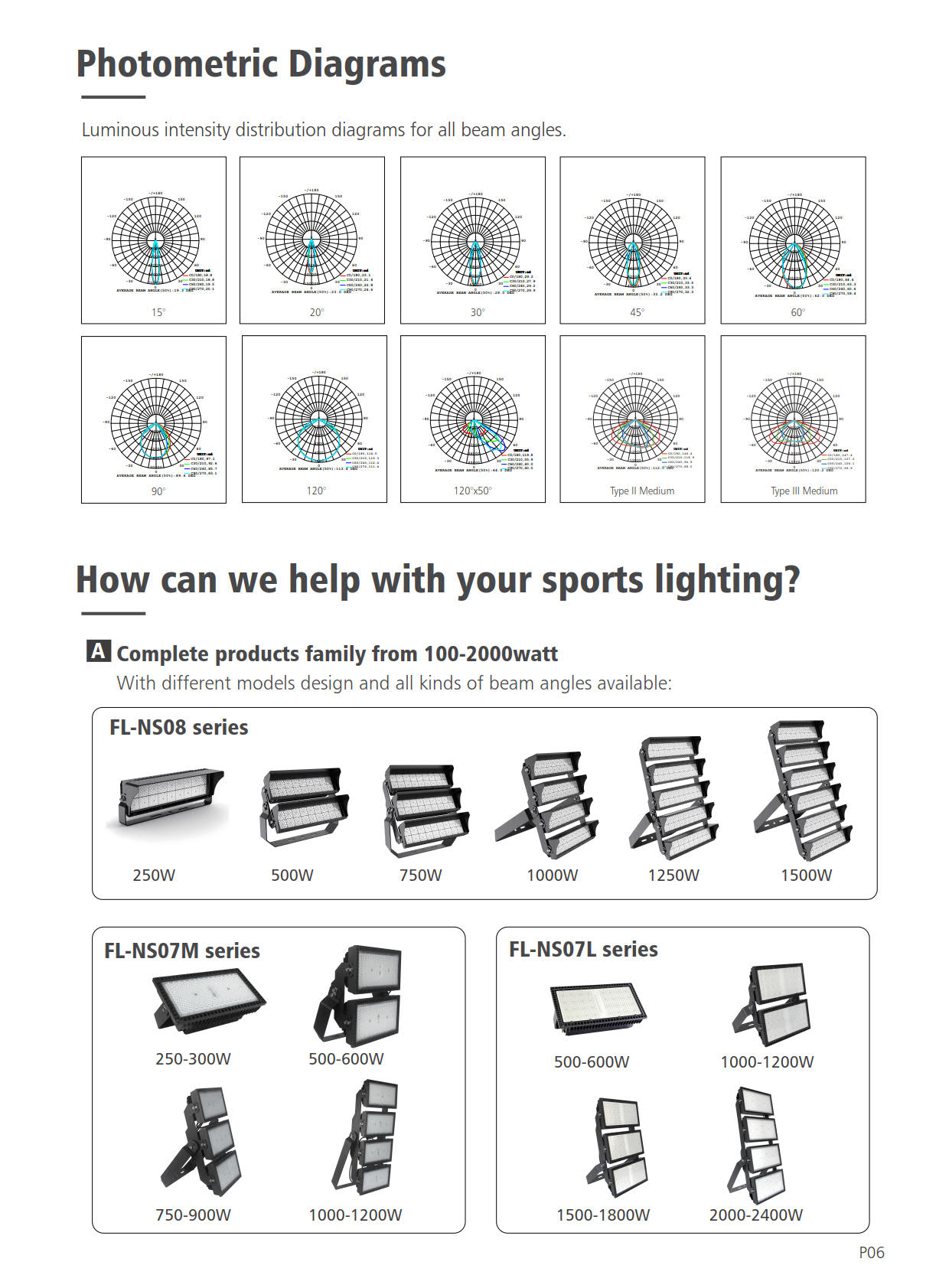

● Beam angle:15°/20°/30°/45°/60°/90° 120°/120°*50°/30°*90 Type II Medium/Type III Medium
● Driver : 4pcs of Meanwell driver (Model:XLG-240)
● Input :100-305VAC
● Surge protection; 4kV line-line, 6kV line-earth; Additional 10KV/20KV SPD is suggested
● IP rating : IP66
● Housing: Corrosion resistant pure die-cast aluminum
● Bracket : Stainless steel
● Cover-of-driver: Profile aluminum
● With tempered glass cover

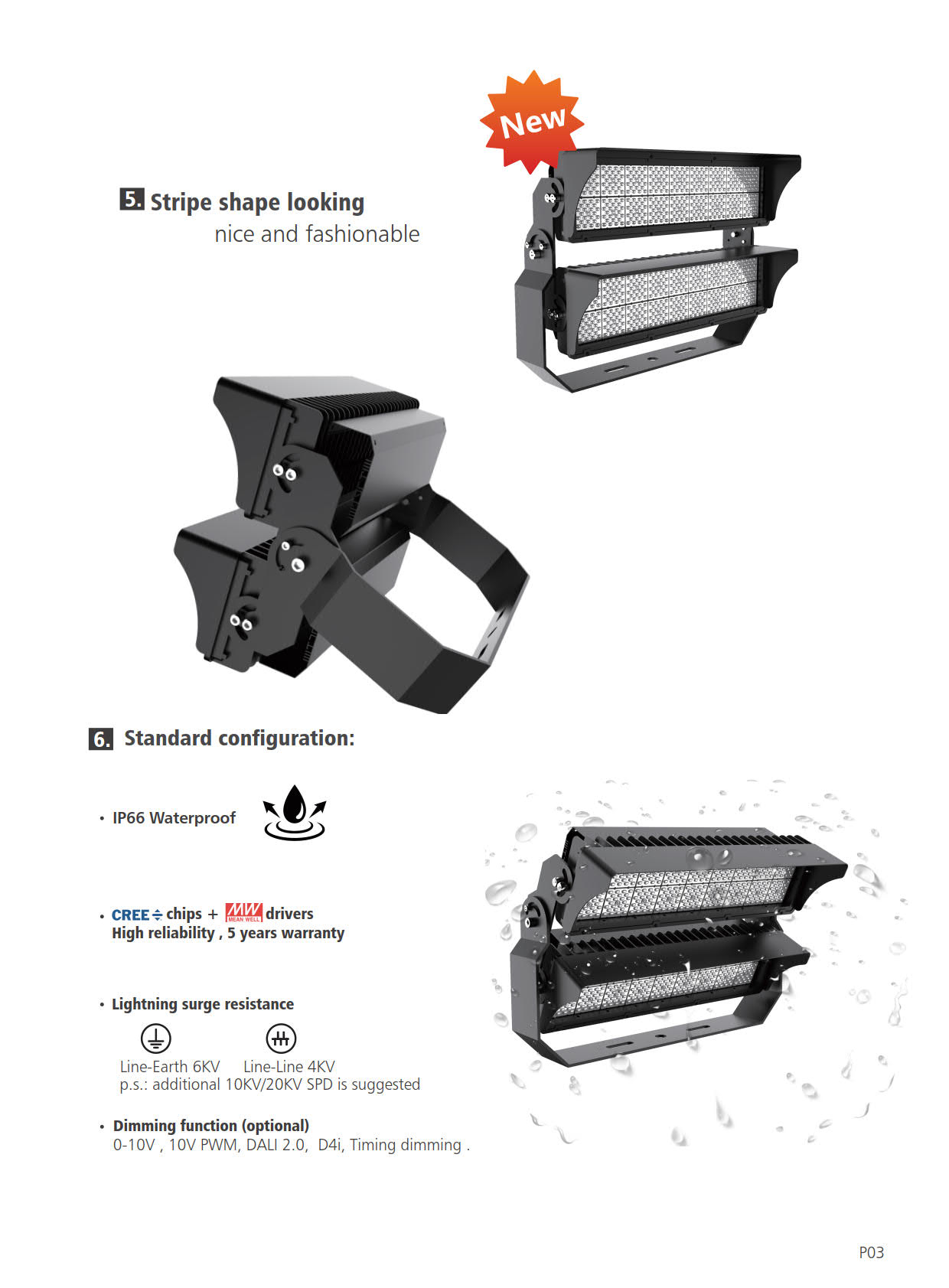

● Each module is adjustable
● Lifespan : > 50,000 hours
