QUADRO REFIT/ECO | 灯饰 | 室内照明
中国内地
展位编号: GH-D07 | 互联照明
产品规格
灯具样式

现代

包括灯泡

品牌

sheenly

尺寸

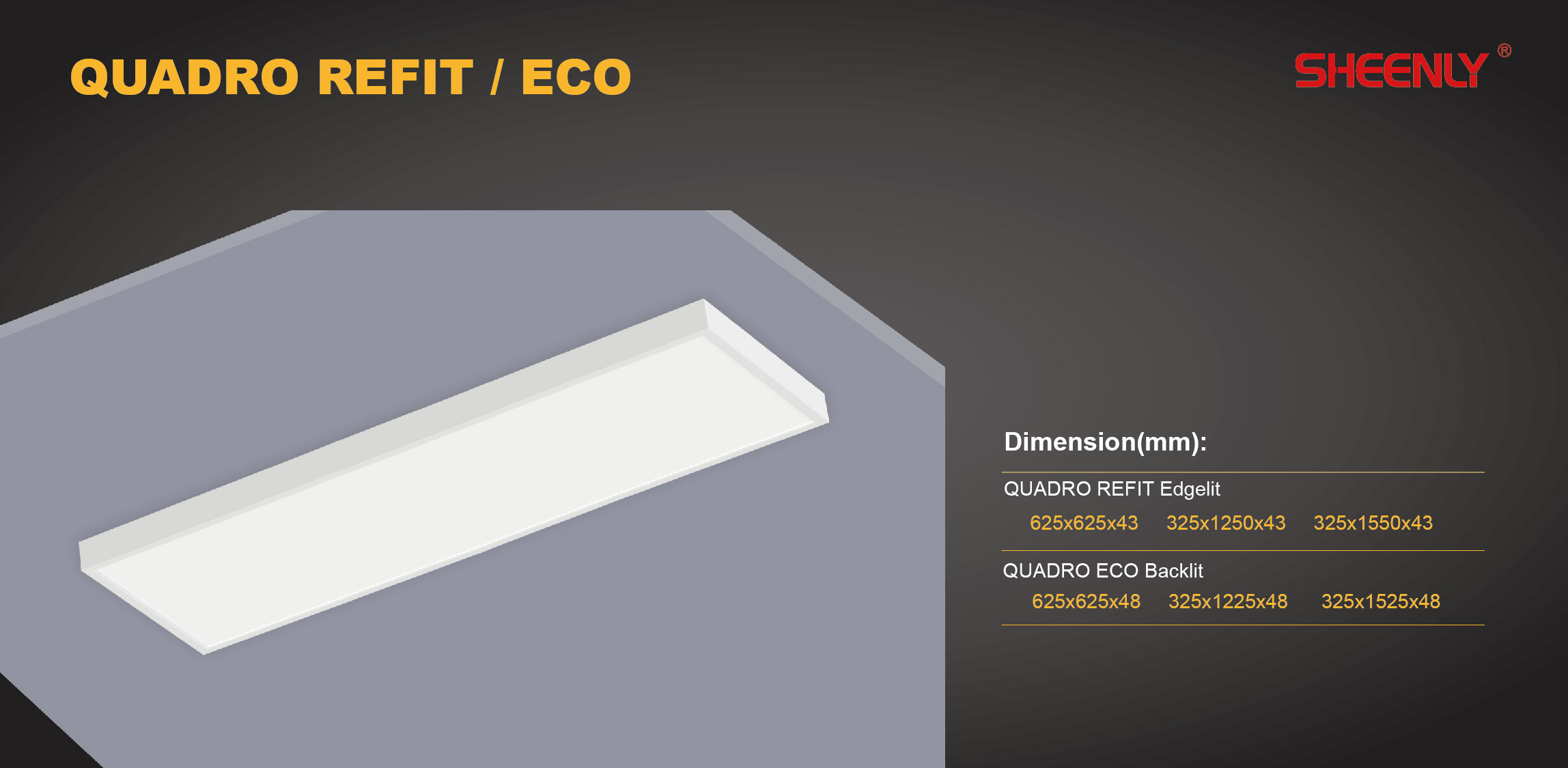

625x625x43mm, 325x1250x43mm, 325x1550x43mm

材料

extruded aluminum profile

是否可订造

可以

产品简介

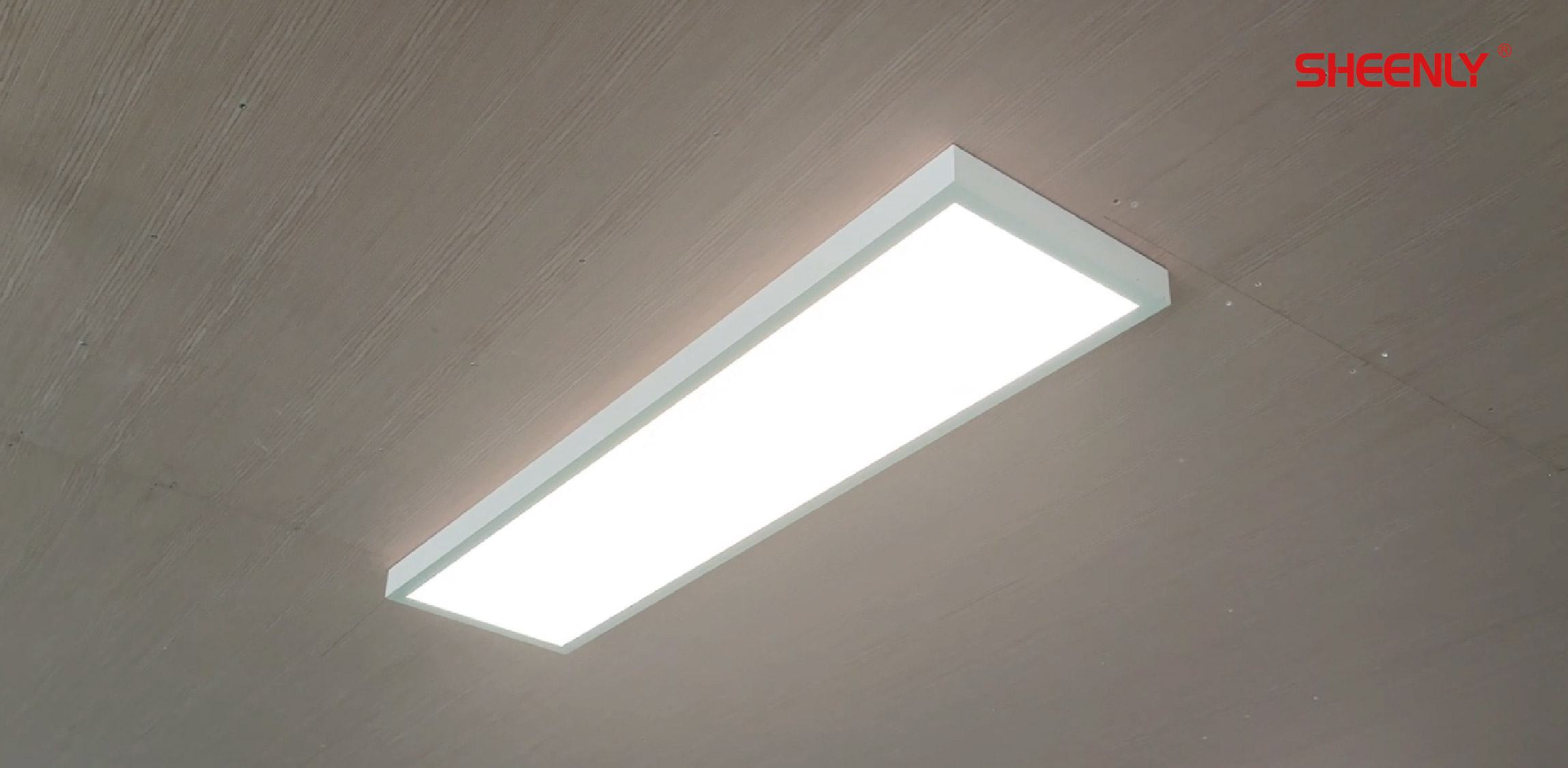

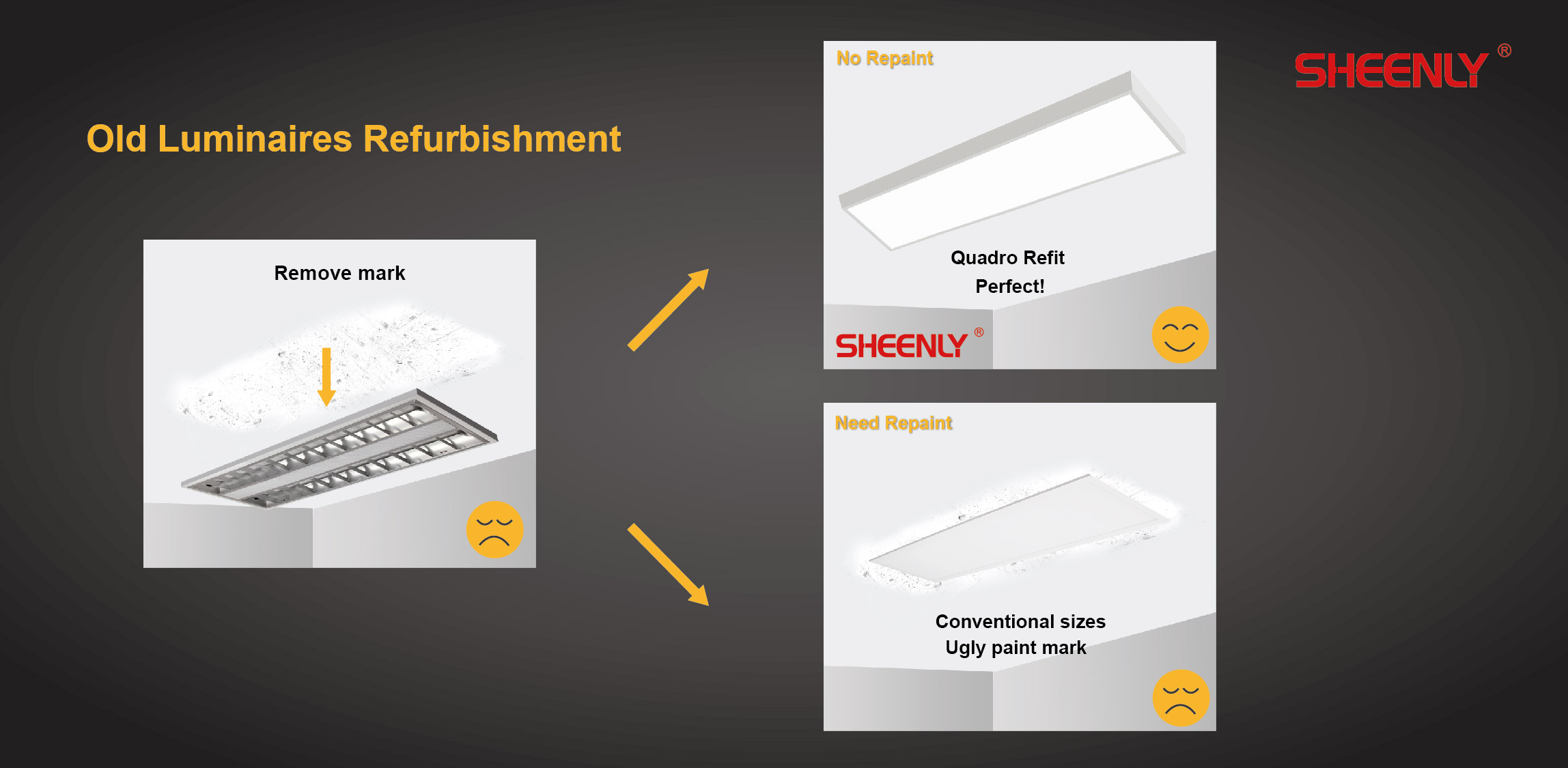

Tailor-made for refurbishment jobs for surface mounted luminaires.  The innovative mounting mechanism, and  special sizes facilitate fast change of luminaires from old to new, and cleverly cover the old paint mark left over by the old luminaires, best options for replacing or refurbishing old T5/T8 Louvre fixtures!

  • Minimalist and timeless design
  • Innovative installation mechanism to facilitate fast and secure installation
  • Supports either Opal or Prismatic diffusors for different light distribution
  • Variants are available in different sizes, suitable for ceiling, wall and pendent mount
  • The new luminaire housing formation technology provides the possibility for size tailoring
  • Robust and versatile for a wide range of applications, a rich list of customizing are optional

Product

Part Number

Power(W)

Color

Lumen Output
(lm)

RA>

Beam

Dimension
[mm]

Quadro ECO Backlit Surface Mounted Luminaire

SL-PAN-35W-XW-S60-D

35W

WW: 3000K
NW: 4000K
DW: 5000K
PW: 5700K

4900

80

120°

625*625*48

SL-PAN-35W-XW-S312-E

35W

4900

325*1225*48

SL-PAN-40W-XW-S315-E

40W

6000

325*1525*48

Quadro ECO Backlit Surface Mounted Luminaire
CCT Switchable

SL-PAN-35W-XW-S60-D-S

35W

WW: 3000K
NW: 4000K
DW: 5000K
PW: 5700K CCT Switchable

4900

80

120°

625*625*48

SL-PAN-35W-XW-S312-E-S

35W

4900

325*1225*48

SL-PAN-40W-XW-S315-E-S

40W

6000

325*1525*48



Product

Part Number

Power(W)

Color

Lumen Output
(lm)

RA>

Beam

Dimension
[mm]

Quadro Refit Surface Mounted Luminaire

SL-PAN-35W-XW-S60-R

35W

WW: 3000K
NW: 4000K
DW: 5000K
PW: 5700K

4400

80

90°

625*625*43

SL-PAN-40W-XW-S312-R

40W

5000

325*1250*43

SL-PAN-50W-XW-S315-R

50W

6250

325*1550*43

Quadro Refit Surface Mounted Luminaire
CCT Switchable

SL-PAN-35W-XW-S60-SI

35W

WW: 3000K
NW: 4000K
DW: 5000K
PW: 5700K CCT Switchable

4400

80

90°

625*625*43

SL-PAN-40W-XW-S312-SI

40W

5000

325*1250*43

SL-PAN-50W-XW-S315-SI

50W

6250

325*1550*43



生产所需时间

30
