GaN 36W Smart Quick Charger Power Adapter with Type-C PD36S

香港

展位编号: 3CON-S34 | 「貿發網」產品陳列專區

产品规格

Interface

Type C

Minimum Order Quantity

500PCS

New Tech

High Frequency and High Efficiency GaN Power Devices

Product condition

OEM

Model No.

PD36S

Compatible Brand

All major branding with Type-C Interface

Port

Shenzhen

Size

N/A

Type

Smartphone, Tablet and Laptop

Brand

N/A

Charging Efficiency

91.4%

Colour

White

Power

36W

Type of Payment

HK Bank TT Advance

产品简介

GaN 36W Smart Quick Charger Power Adapter with Type-C PD36S,

Suitable for all major branding Smartphone, Tablet and Laptop with Type-C interface
36W Output
With GaN TECH, Efficiency 91.4%
Compact size, light weight and easy to take, 9mm thickness only
Super compatible with Apple/Android system
Fast Charging and iPhone 13 will be charged 60% within 30 min.
Auto Over Voltage, over Current and Over Temperature Protection, more safe
Low Ripple and Low EMI

Major Spec.

Input 90-264VAC, 120/230VAC

Input Frequency 47-63Hz, 60/50Hz

Output Type-C PD: 5V/3A, 9V/3A, 12V/3A, 15V/2.4A, 20V/1.8A,

PPS : 3.3-11.0V/3A, 3.3-16V/2A

Output Power: 36W

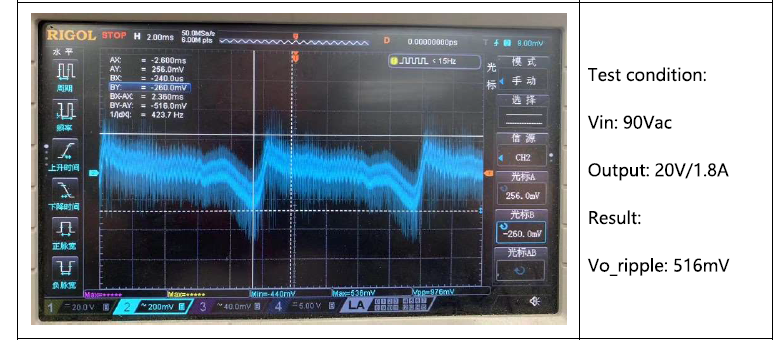

Output Voltage Ripple 516mV under testing Input 90VAC and Output 20V/1.8A

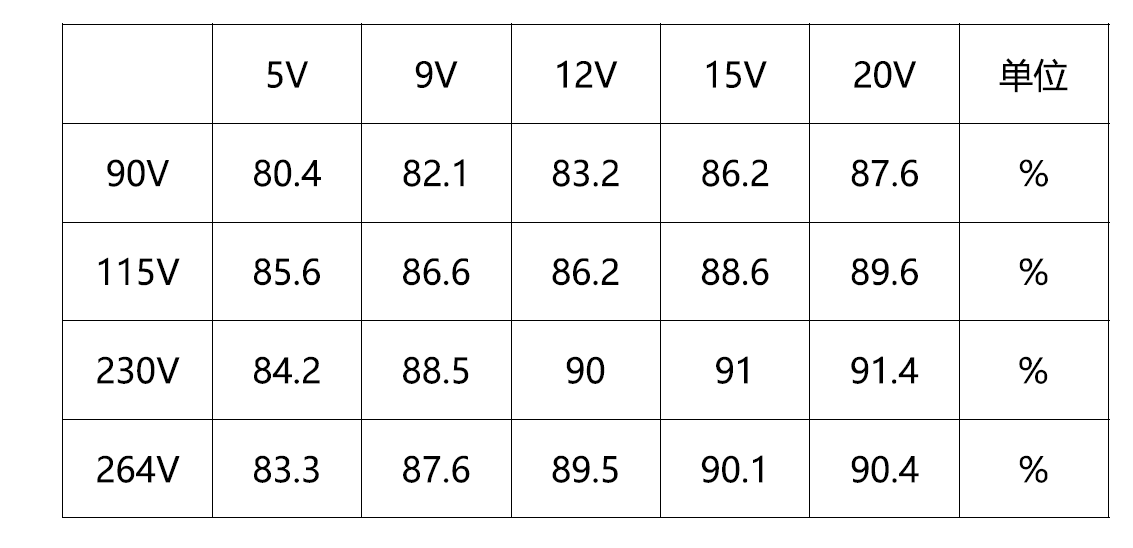

Max Efficiency 91.4% under testing Input 230VAC and Output 20V/1.8A

EMC CE Meet EN55032 CLASS B

Size 61.6 X 36.4 X 9.0MM

Power Density 29.2W/IN3

Full Load Output Power Chart
