2.95 inch 3 inch IPS LCD Touch Screen 360*640 350 Brightness LCD TFT LCD Module With CTP
Microtech Technology Company Limited
香港
展位編號: 5B-F09 | 顯示技術世界
產品規格
是否可訂造

可以

品牌

Microtech

尺寸

2.95inch

型號編號

MTF0295VV01A-V1

產品簡介
Feature
Spec





Display Spec.
Size
2.95 inch
Resolution
360(RGB) x 640
Technology Type
a-Si
Pixel Configuration
R.G.B. Vertical Stripe
Pixel pitch(mm)
0.102 (H)*0.102(V)
Display Mode
Normally Black
Surface Treatment
HC
Viewing Direction
FREE

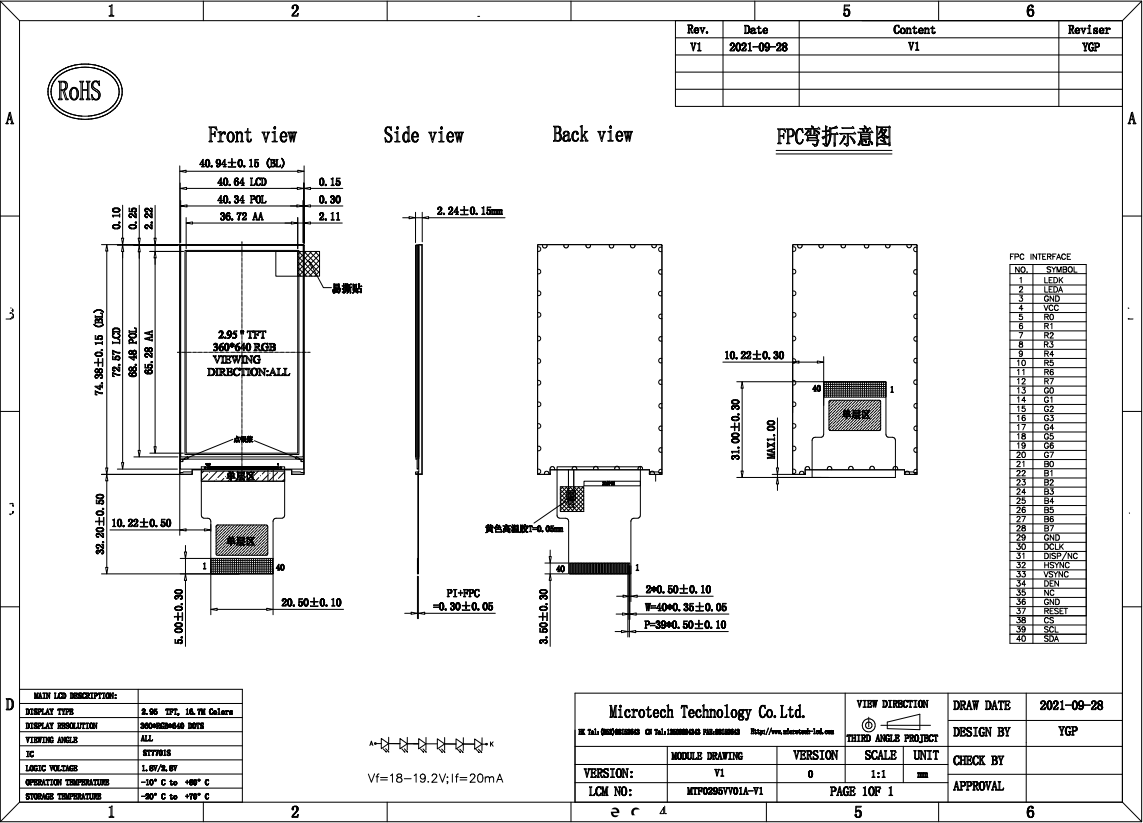

Mechanical Characteristics
Module (W x H x D) (mm)
40.94 x 74.38x 2.24mm
Active Area(mm)
36.72*65.28mm
With /Without TSP
With CTP
Matching Connection Type
FPC
LED Numbers
6 LEDs
Weight (g)
TBD
LCM Luminance
350 Cd/m2



Electrical Characteristics
Interface
RGB 24 ibt
Color Depth
16.7M
LCD Driver IC
ST7701S




Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180 degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%

生產所需時間

25-45 日
