產品規格
品牌
Microtech
型號編號
MTF070WX61A-V1+TP USB
尺寸
7.0inch
是否可訂造
可以
產品簡介
Item | Feature | Spec |
Display Spec. | Size | 7 |
Resolution | 1280(RGB)x800 | |
Technology Type | a-Si | |
Pixel Pitch(mm) | 0.117x0.117 | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | SFT with Normally Black | |
Surface Treatment(Up Polarizer) | HC | |

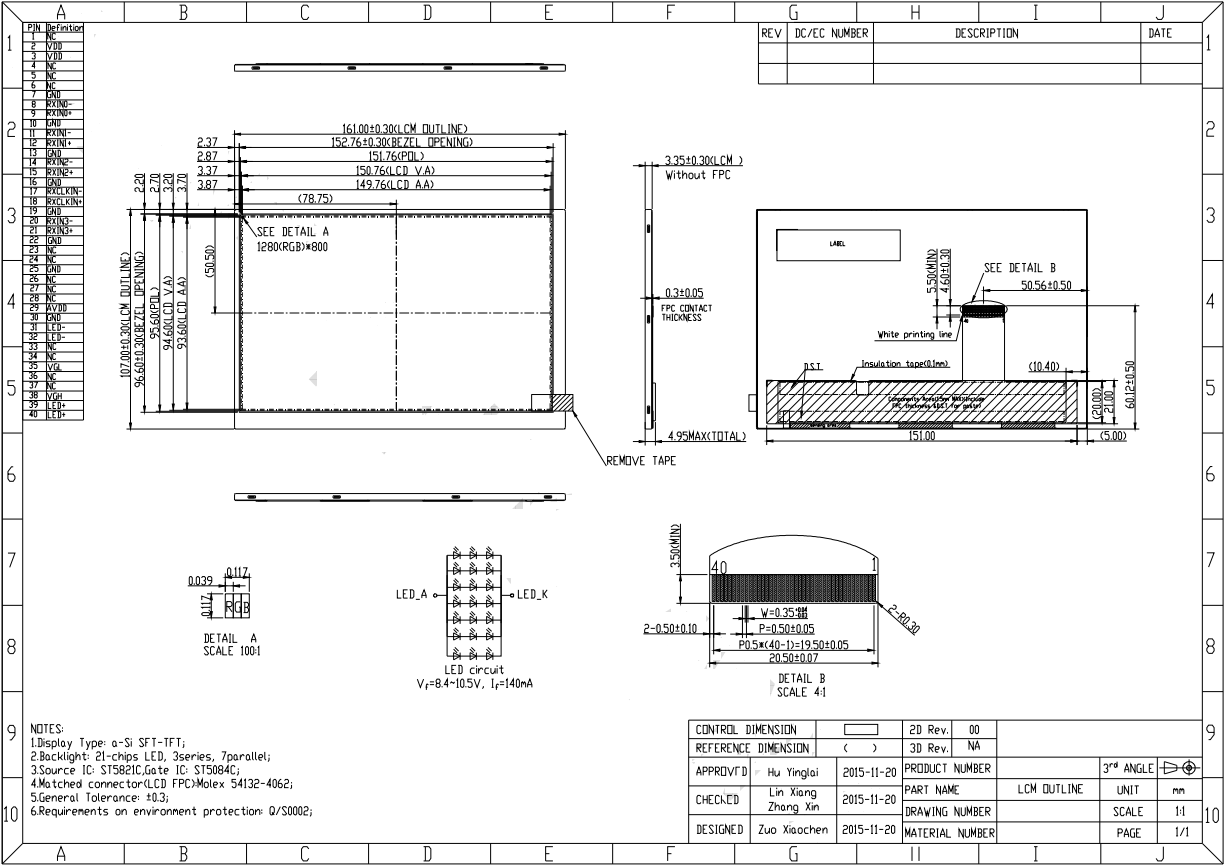

Mechanical Characteristics | LCM(WxHxD) (mm) | 161.0x107.0x3.35(Typ) |
Active Area(W x H) (mm) | 149.76 x 93.60 | |
LED Numbers | 21 LEDs | |
Matching Connector Type | Molex 54132-4062 | |
Weight(g) | 120 (Typ) | |
Operation temperature | -20-70℃ | |
Storage temperature | -30-80℃ | |
Electrical Characteristics | Interface | LVDS 40 Pin |
Color Depth | 16.7M | |
Driver IC | 3*ST5821Cand 1*ST5084C |
生產所需時間
25-45 日
