3.92 inch LCD Touch Screen 4 inch Fully Bonded Assembly 320*320 SPI/RGB /MCU Interface with CTP
Hong Kong
Booth: 5B-F09 | World of Display Technology
Product Specification
Brand
Microtech
Model No.
MTZ039QH02A-V1
Customised
Yes
Size
3.92inch
Product Description
3.92 inch LCD Touch Screen 4 inch Fully Bonded Assembly 320*320 SPI/RGB /MCU Interface with CTP
MTZ039QH02A-V1 is a color active matrix TFT LCD Q-panel using amorphous silicon TFT„s (Thin Film Transistors) as an active switching devices. This Q-panel has a 3.92 inch diagonally measured active area with Z2 resolutions (320 horizontal by 320 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this Q-panel can display 16.7Mcolors.
Parameter | Value | Unit |
Size | 3.92 inch | |

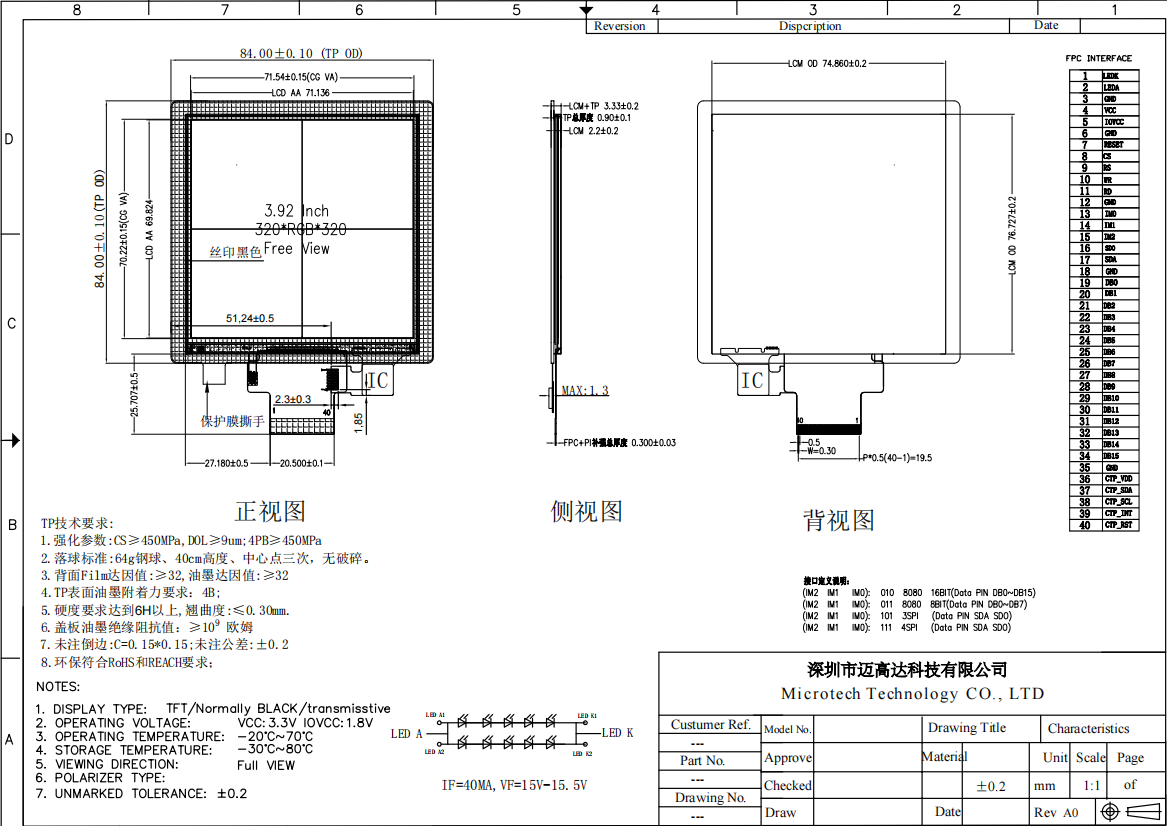

Module outline (W x HxD) | 76.727X74.86X3.33mm (Including the thickness of TP) | |
Active area (WxH) | 71.136X69.824mm | |
Display Resolution | 320X320 | pixels |
Pixel Arrangement | RGB Vertical stripe | — |
Display colors | 16.7M | COLORS |
Display Mode | Normally Black | |
Interface Type | MCU/SPI | — |
Power Supply Voltage | 2.8/3.2 | V |
Back-light | White LED*10 | pcs |
Driver IC | ILI9488 |
Production Lead Time
25-45 days
