產品規格
Brand
SHEENLY
Switch Type
Knob Switch
Customized
Yes
Base Type
LED
Warranty
5 year
Light Source
LED Chips
Is Dimmable
Yes
Including Bulbs
Yes
Power Source
DC, DC
Body Material
Aluminum, Aluminum, Aluminum
Certification
CE, CE, CE
產品簡介

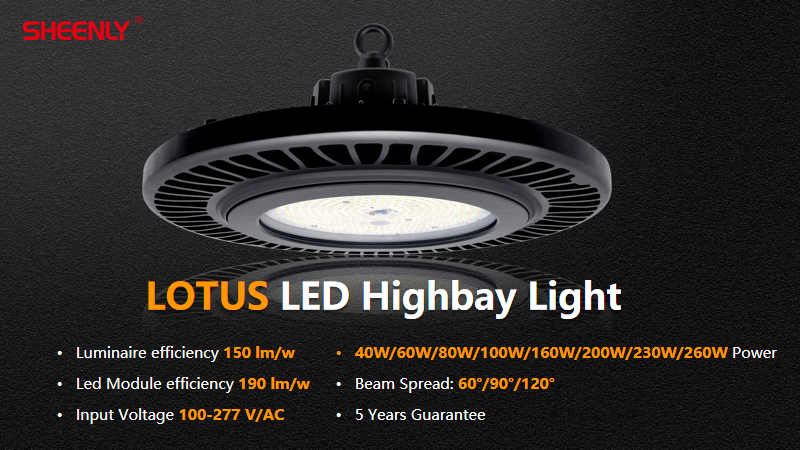

The Lotus family is a true star among Sheenly’s highbay portfolio. Over the years it accounts for the highest sales volume and the lowest failure rate, and win the highest recognitions from our customers. The latest generation Lotus II reserved all the advantages of Gen1, and pushes all the key parameters to the new high. The whole family consists of Lotus mini, Lotus, Lotus Plus and Lotus HT, this large variety helps to cope with both easy and harsh operating environment in high ceiling lighting applications.
1. Best in Class heat management, unrivaled 54.5cm2/w
2.LED operating temperature as low as 45C for 100W; 60C for 230W
3. Outstanding heat management brings superb lumen maintenance, L80B10 50KH, always ready for 24/7 non-stop operation
4. 4 in 1 lenses ensures outstanding 150lm/W efficiency without compromising light uniformity and light beam coverag
5. Ability to serve in the most challenging ambient conditions, comfortably works at 55C (Lotus) and 65C (Lotus HT) ambient temperature
6. Rock solid reliability, most of Lotus G1 are still in field for full operation after 9yrs

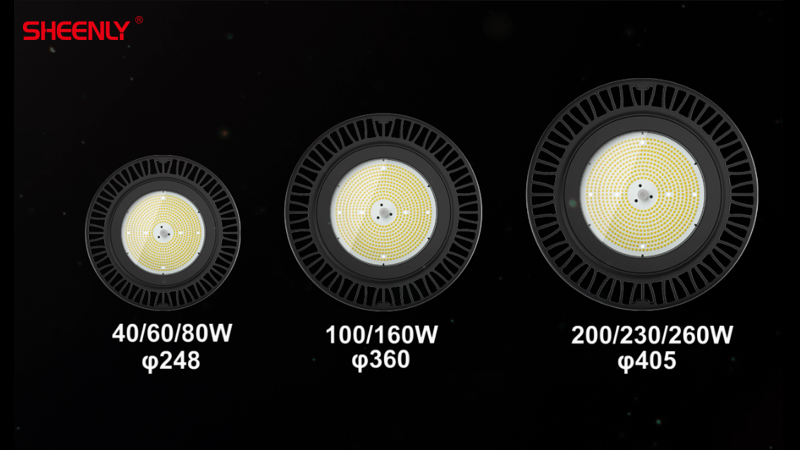

7. Full range of power and lumen options, 40-320W, offers comprehensive light planning options

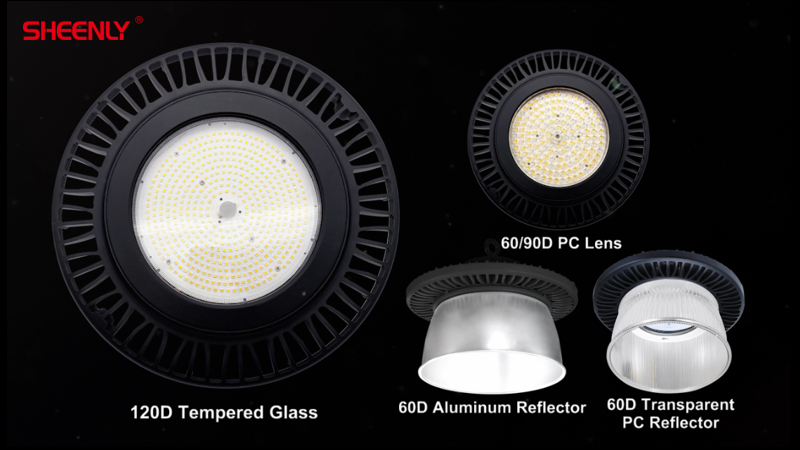

8. Extensive accessories and upgrade options, including but not limited to:
--- PC reflector
--- Aluminum reflector
--- Dali, 0-10V
--- Sensor
--- Multi-lumen
| Product | Part Number | Power | Color | Lumen Output (lm) | Beam | Dimension [mm] |
| Lotus Mini 40-80W Upto 130lm/W Ra 80 | SL-BAY-40W-XW-AN | 40W | WW: 3000K NW: 4000K DW: 5000K PW: 5700K | 5200 | 120°/90° | Ø248*158 |
| SL-BAY-60W-XW-AN | 60W | 7800 | 120°/90° | |||
| SL-BAY-80W-XW-AN | 80W | 10400 | 120°/90° | |||
| Lotus 2 100-260W 5 Year 150lm/W Ra 80 | SL-BAY-100W-XW-AN2 | 100W | WW: 3000K NW: 4000K DW: 5000K PW: 5700K | 15000 | 60°/90°/120° | Ø360*176 |
| SL-BAY-160W-XW-AN2 | 160W | 24000 | Ø360*176 | |||
| SL-BAY-200W-XW-AN2 | 200W | 30000 | Ø405*176 | |||
| SL-BAY-230W-XW-AN2 | 230W | 34500 | Ø405*176 | |||
| SL-BAY-260W-XW-AN2 | 260W | 39000 | Ø405*176 |
生產所需時間
30 日
