MTE058AA01A-V1
Microtech
可以
5.84inch
The display is a TFT active matrix electrophoretic display, with interface and a reference systemdesign. The 5.84inch active area contains 768x256 pixels, and has 1-bit white/black 1-bit red fulldisplay capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing controllogic. oscillator, DC-DC.SRAM, LUT VCOM and border are supplied with each panel.
768x256 pixels display
High contrastHigh reflectanceUltra wide viewing angle
Ultra low power consumption
Pure reflective mode
Bi-stable display
Commercial temperature range
Landscape, portrait modes
Hard-coat antiglare display surface
Ultra Low current deep sleep mode
On chip display RAM
Waveform can stored in On-chip OTP or written by MCU
Serial peripheral interface available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate and Source driving voltageIC signal master interface to read external temperature sensor
Built-in temperature sensor
Support partial update mode
| Parameter | Specifications | Unit | Remark |
| Screen Size | 5.84 | Inch | |
| Display Resolution | 768(H)x256V) | Pixel | DPI:138 |
| Active Area | 140.70x46.90 | mm | |
| Pixel Pitch | 0.1832x0.1832 | mm | |
| Pixel Configuration | Rectangle | ||

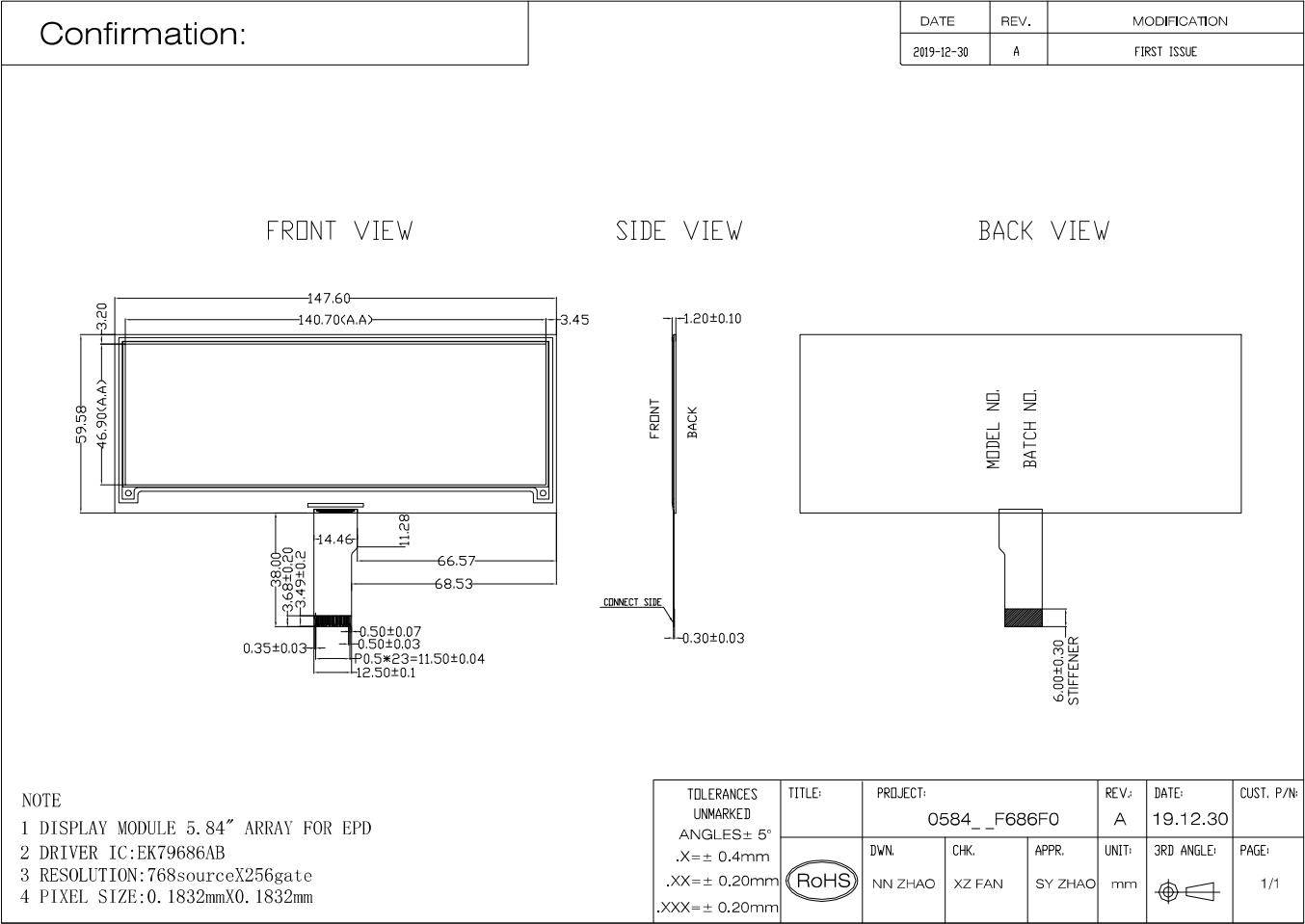

| Outline Dimension | 147.6(H)x59.58 (V)x 1.20(D) | mm | |
| Weight | 20.6±0.5 |
