1602 dot matrix character module MPU interface COB FSTN black background yellow text LCD module
Hong Kong
Booth: 5B-F09 | World of Display Technology
Product Specification
Model No.
MTB1602A8B
Brand
Microtech
Size
16*2
Customised
Yes
Product Description
Display Specification
- Display Character: 16 character X 2 line
- Character Font: 5X8 dots + cursor
- Display Color-Display Background Color: FSTN, Black-White
- Polarize Mode: Negative, Transmission
- Viewing Angle: 6:00
- Display Duty: 1/16
- Driving Bias: 1/5
- Character Generator ROM (CGROM): 8320 bits (192 characterX5X8 dots) & (32 characterX5X10 dots)
- Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)
- Display Data RAM (DDRAM): 40X8 bits (80 characters max)

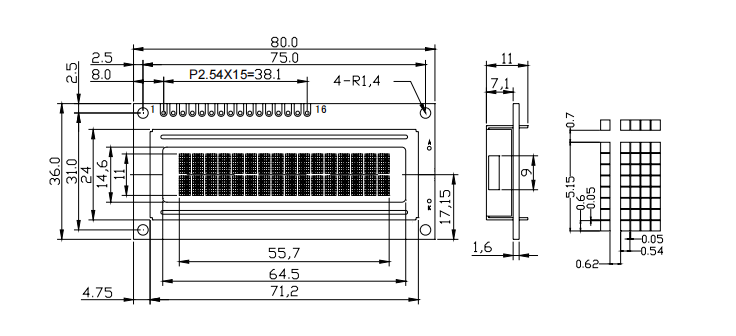

Mechanical characteristics (Unit: mm)
- External Dimension: 80X36X11
- View Area : 64.5X14.6
- Character Font: 5X8 dots + cursor
- Character Size: 2.9X5.15
- Dots Size:0.54X0.6
- Character Pitch: 3.52X5.85
Weight： g
POWER： +5V
Production Lead Time
25-45 days
