800*480 LCD Module 1000nits 7.0 inch TN Customized LCD Screen with RGB 24 Bits TCON
Hong Kong
Booth: 5B-F09 | World of Display Technology
Product Specification
Size
7.0inch
Customised
Yes
Model No.
MTF070WV44A-V1
Brand
Microtech-lcd
Product Description
800*480 LCD module 1000nits 7.0 inch TN customized LCD screen with RGB 24 bits TCON
Feature | Spec | |
Display Spec. | Size | 7.0 inch |
Resolution | 800(RGB) x 480 | |
Technology Type | a-Si TFT | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Pixel pitch(mm) | 0.1926 (H) x 0.179(V) | |
Display Mode | TM,NW | |
Surface Treatment | Anti Glare | |
Viewing Direction | 12 o’clock | |
Gray Scale Inversion Direction | 6 o’clock | |

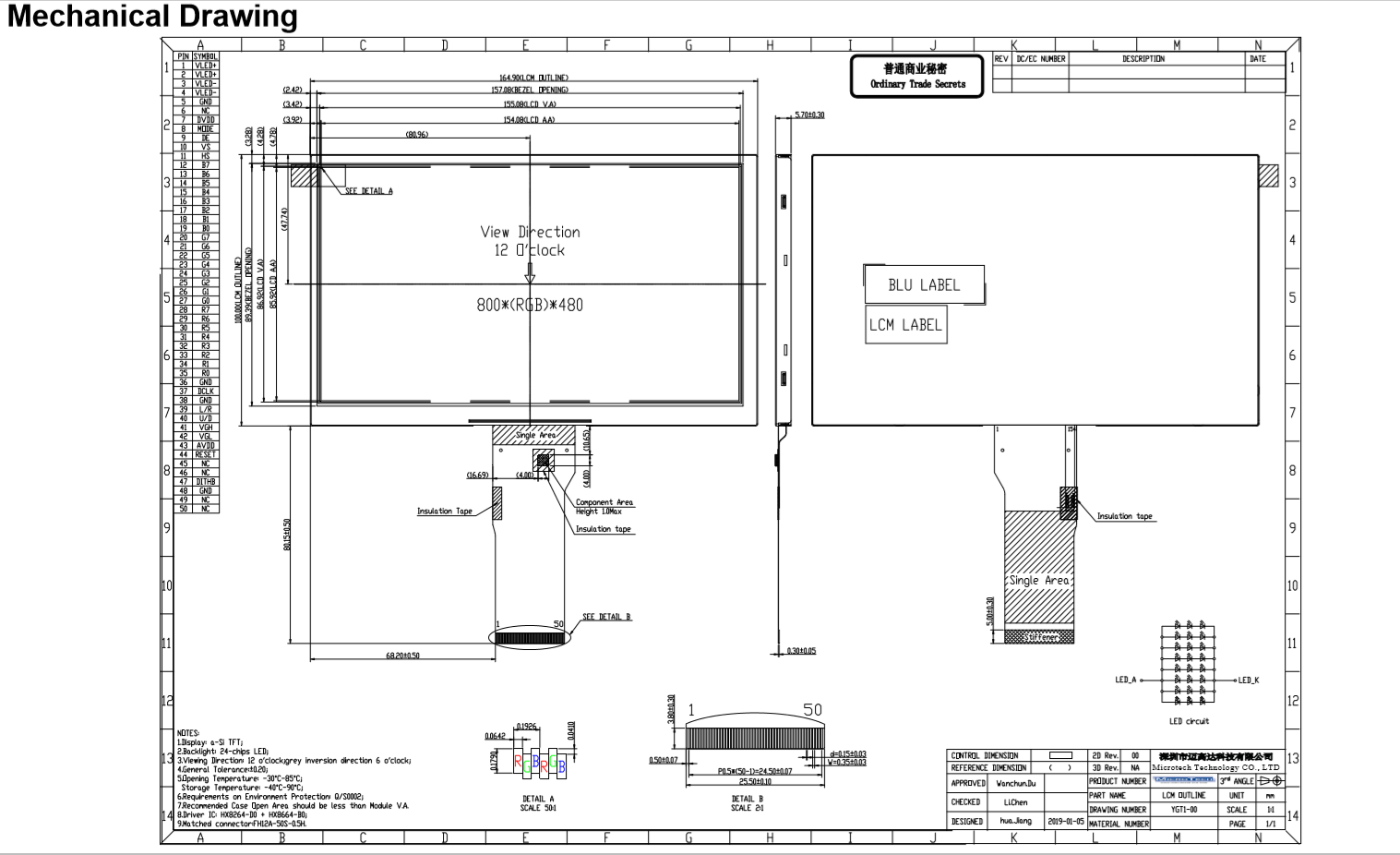

Mechanical Characteristics | LCM (W x H x D) (mm) | 164.9x 100 x 5.7 |
Active Area(mm) | 154.08 (W) x 85.92 (H) | |
With /Without TSP | Without TSP | |
Matching Connection Type | FH12A-50S-0.5H | |
LED Numbers | 24 LEDS | |
Weight (g) | TBD | |
Electrical Characteristics | Interface | RGB 24 bits with TCON |
Color Depth | 16.7M | |
Driver IC | HX8264D*1+HX8664B*1 | |
Production Lead Time
25-45 days
